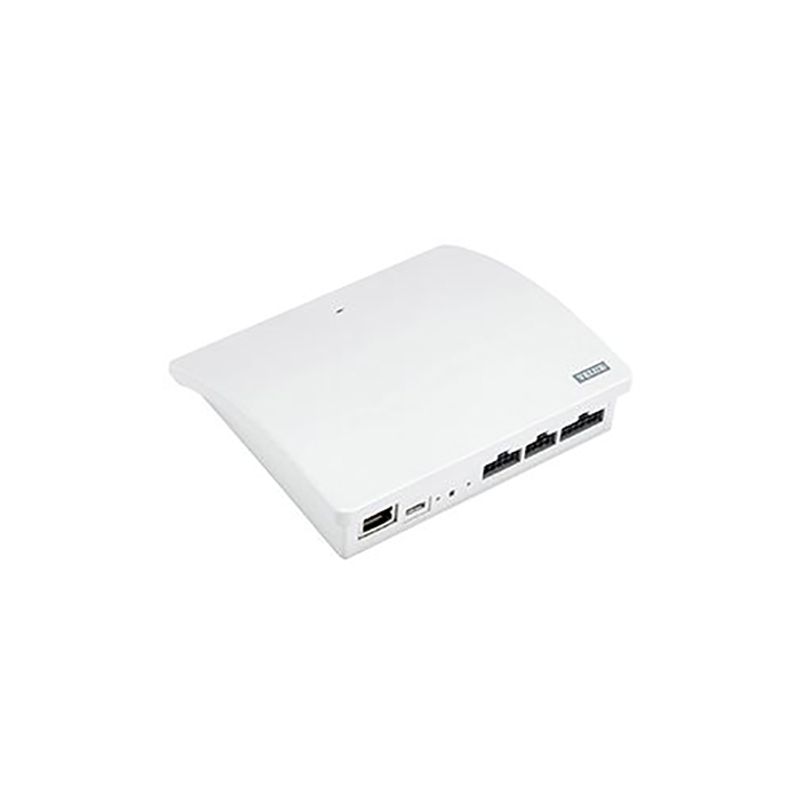

KLF 200

Description

🔧 Key Features & Functionality

• Dual-mode operation: Works as both an interface and a wireless repeater, extending the range of io‑homecontrol® communication signals.

• Protocol support: Uses the two‑way io‑homecontrol® wireless standard, operating at 868 MHz, with optional Wi‑Fi (802.11 b/g/n) only during initial setup mode if needed.

• Flexible integration: Supports up to 10 potential‑free signal inputs (for sensors or switches), allowing activation of 5 individual actuators or grouped control, with feedback outputs for integration into building management systems.

• Home automation compatibility: Works with standard automation protocols like IHC, KNX, LON, making VELUX products accessible to smart‑home systems via translated commands and status feedback.

• Device capacity: Can manage up to 200 INTEGRA® devices, with up to 200 nodes, organized in five functional groups.

• Web-based setup tool: Offers an integrated mini-Wi-Fi web interface for configuration and scene setup; compatible with firmware version 2.0.0.71 or newer.

⚙️ Technical Specifications

• Power: 230 V AC input, typical consumption ~2 W (1 W when in repeater mode).

• Inputs/Outputs:

  • Inputs (10) accept up to 30 V AC/DC, max. 50 mA per channel

  • Outputs (5) relay normal-open contacts with 2 second feedback pulse.

• Wireless range: Up to 300 m in open field; ~30 m indoors depending on building materials.

• Operating conditions: IP 20 rated for indoor use, ambient temp 0–50 °C, relative humidity up to 90% non‑condensing.

• Physical: Compact ABS enclosure (136×127×34 mm), light weight (~160 g), finish in white ABS NCS S 1000‑N.

• Certifications: CE‑marked, compliant with LVD, MD, RoHS, WEEE, RTTE and EMC standards.

✅ Benefits & Use Cases

• Seamless smart‑home integration: Connects VELUX INTEGRA products to existing building control systems—even if they don’t natively support io‑homecontrol®.

• Extended wireless coverage: Helps overcome signal limitations by acting as a repeater in challenging layouts.

• Scalable control: Manage up to 5 zones or groups, or distribute individual device control across multiple inputs.

• Reliable status feedback: Outputs send confirmation back to your automation system for reliable event tracking.

🛠 Setup & Compatibility Notes

• Firmware requirement: For full features and compatibility with external adapters or web tools, ensure the unit runs firmware version at least 2.0.0.71.

• Installation options: Program via web browser (local mini-Wi‑Fi) or using a VELUX Remote (e.g. KLR 200) for scene setup or device linking.

• Scene capacity: Can store up to 32 scenes (groups of device positions) and monitor up to 200 nodes—enough for comprehensive automated routines.

🔍 Quick Specs Summary

🏡 Ideal For:

• Home automation enthusiasts looking to integrate VELUX skylights, shades or blinds into systems like KNX or LON

• Projects requiring increased wireless reach or signal relays through the home

• Settings where device feedback and precise group control are needed (e.g. climate control routines)
